Heavy-Duty Industrial Punches: Critical Geometries for High-Volume Stamping Dies

In the demanding world of sheet metal stamping, punching, and blanking, the punch is the single component that absorbs the highest mechanical stress and wear. A worn, chipped, or poorly heat-treated punch doesn’t just ruin the final part’s aesthetics by leaving excessive burrs; it can also cause press overloads and expensive production line downtime.

At FIESCO, we know that your shop’s productivity hinges on the toughness of your tooling. That is why we offer a specialized engineering and manufacturing service for industrial punches built to print or standard specifications, ensuring an extended tool life even in the harshest automotive and metalworking applications.

If you want to explore our precision machining infrastructure or view the complete range of custom components we build, feel free to browse our industrial products section.

Essential Geometries: Sourcing the Right Punch for Every Application

Not all industrial perforations operate under the same tonnage or stress conditions. Because of this, FIESCO machines the three most demanded geometries in the North American industrial market with micrometric accuracy:

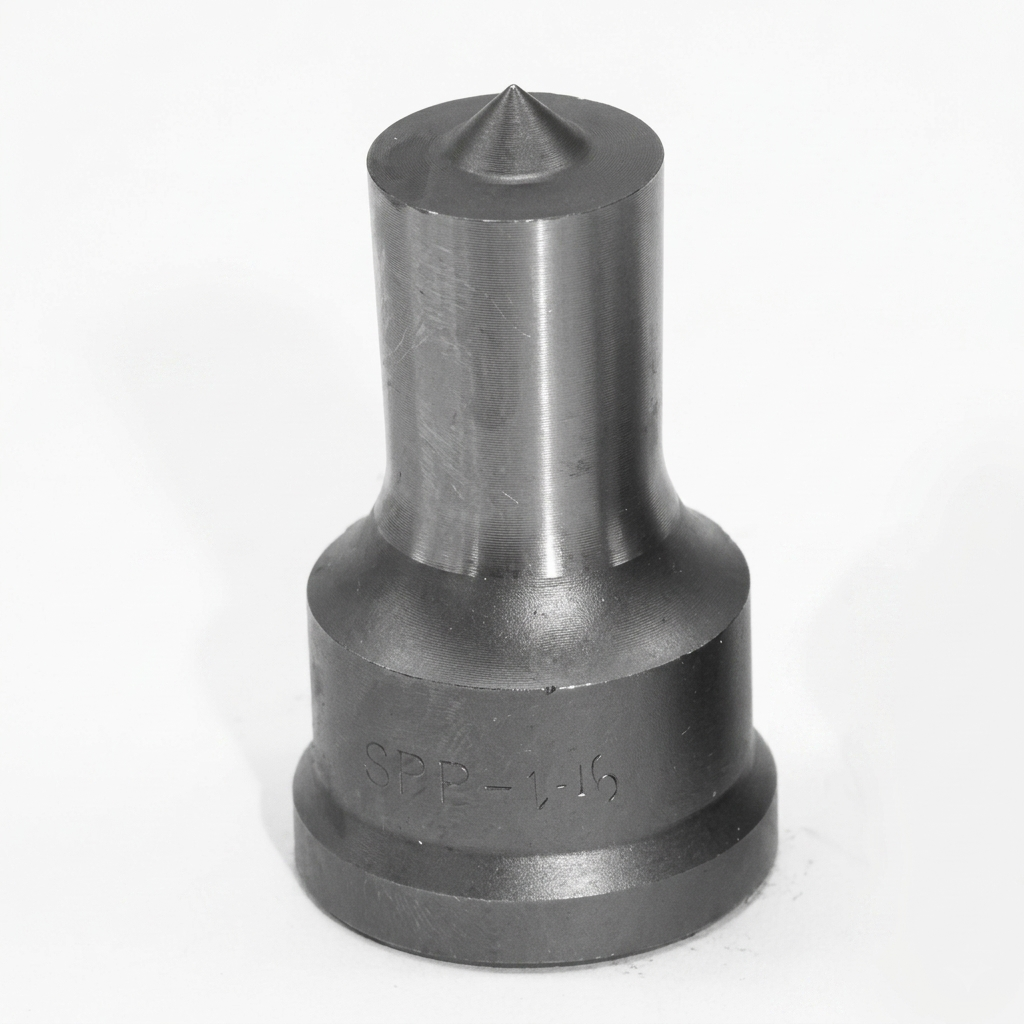

1. Round Punches: The Industry Standard

This is the most common and versatile geometry, primarily used for creating fastener holes, rivet clearances, and bolt passages.

• The FIESCO Advantage: We optimize the shank-to-body blending radii and apply a mirror-like surface finish to the punch body. This drastically reduces friction, prevents sheet metal “sticking,” and lowers the stripping force required by the press.

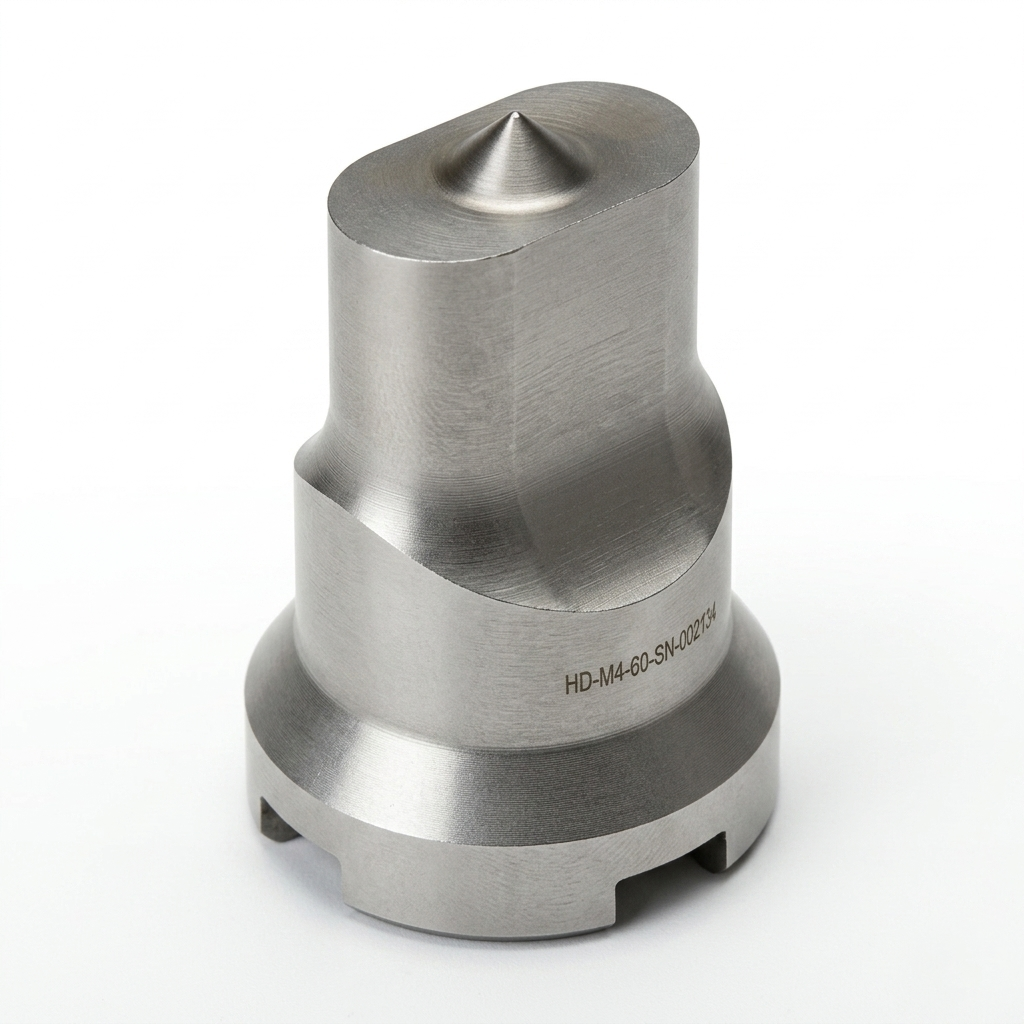

2. Oblong (Slot) Punches: Efficiency in Mechanical Adjustments

Oblong punches are indispensable for stamping slot clearances or slider paths in automotive frames, brackets, and structural enclosures. These shapes allow assembly lines to easily absorb dimensional tolerances.

• The FIESCO Advantage: CNC machining an oblong profile requires flawless concentricity between the head, shank, and point. We strictly control this variable to prevent uneven wear on the matrix or die button.

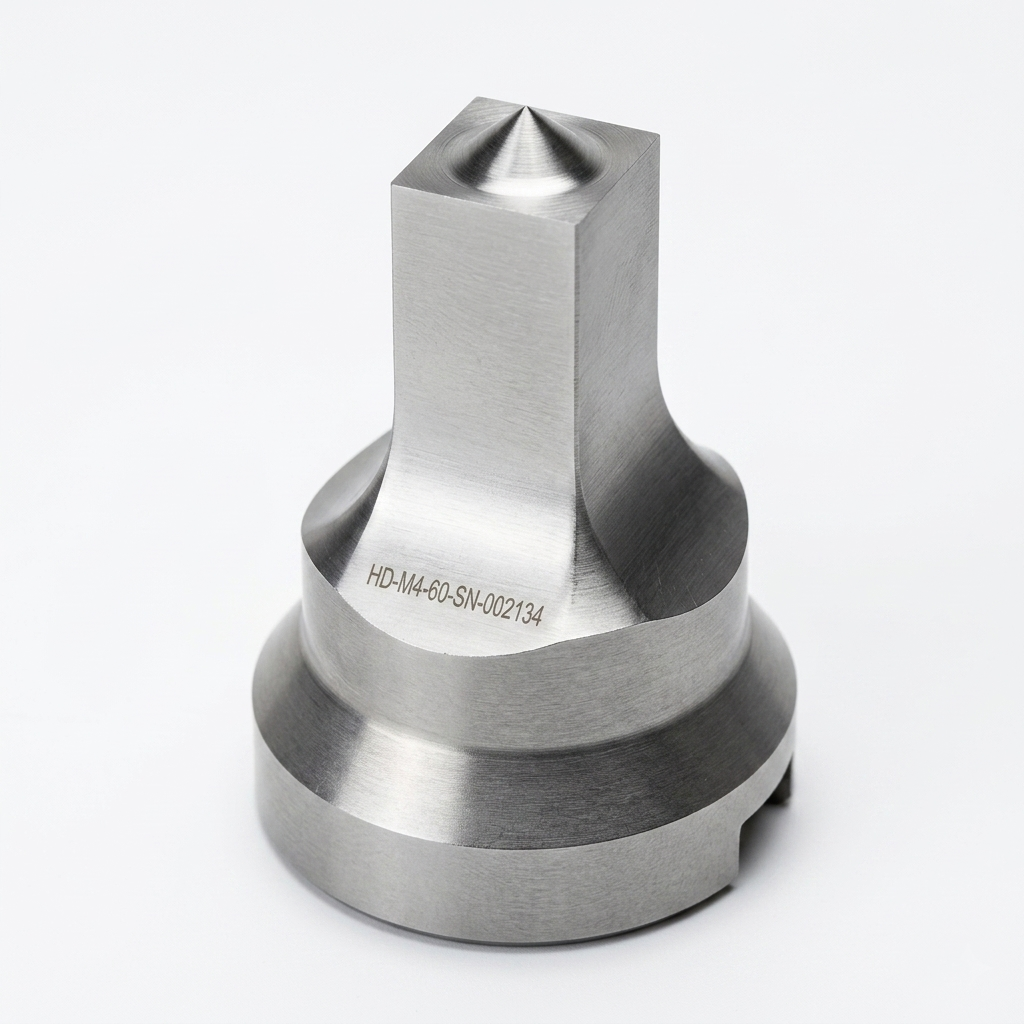

3. Square and Rectangular Punches: Clean Cuts and Keyways

Mainly utilized in manufacturing warehouse racks, ventilation ducting, indexing notches, and structural components where clean, interlocking tongue-and-groove joints are required.

• The FIESCO Advantage: The sharp corners of a square punch are high-stress concentration zones and the most prone to premature chipping. At FIESCO, we engineer controlled micro-radii and apply targeted heat treatments to maximize material toughness right at these critical areas.

Why Source Your Heavy-Duty Punches from FIESCO?

Buying generic or off-the-shelf punches often leads to premature cracking due to improperly selected tool steels. Sourcing your replacement tooling with us grants you access to world-class manufacturing standards:

• Premium Grade Tool Steels: Depending on your application parameters (material thickness, carbon steel, stainless steel, or aluminum), we build your punches out of premium, impact-resistant tool steels such as A2, D2, M2, or powder metallurgy steels.
• Controlled Heat Treatment: We guarantee the exact hardness (measured on the Rockwell C scale) needed for the punch to retain its cutting edge without becoming brittle.
• Custom Sourcing & Tooling Systems: Whether your press setup uses standard ball-lock, button-head configurations, or specific metrics/inches dimensions, we can reverse-engineer your physical samples or blueprints to deliver an exact, drop-in replacement.

Maximize Your Die Performance and Lifetime

Efficient preventive maintenance begins with having the right spare parts ready on your toolroom shelves. Don’t wait for a critical punch to snap and stop a production shift.

At FIESCO, we are fully equipped to supply the high-precision CNC parts and tooling components your plant needs to compete globally. If you need a fast quote for your stamping consumables or want to submit your technical drawings, we invite you to connect with our engineering team via our homepage.
